Codeschloss, Standalone Zutrittskontrolle, Tastenfeld, Keypad, Wasserdicht IP 65, Tasten
| Product Parameter | Parameter Description |

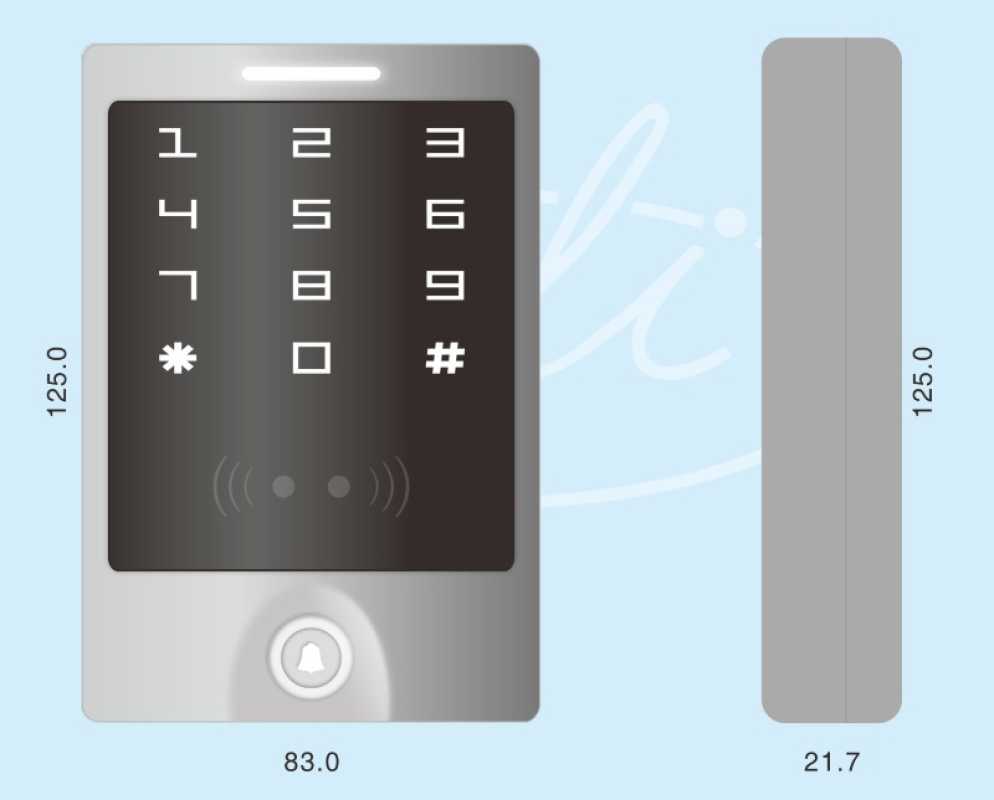

| Dimensions | 125Lx83Wx21.7D(mm) |
| Operating Voltage | DC 12-24V |
| Operating Current | ≤35mA |
| Card Reading Distance | 3—6CM |
| Ambient Temperature |
-40℃—60℃ |
| Keypad transmit format | 4-6 digits key press to output card number format, 4 bits or 8 bits data |
| Type of ID Card | 125KHz, ID |
| Operating humidity | 0～95%（non-condensing） |
| Weight: | 0.4Kg |
Aluminium alloy case, waterproof, fully potted, meets IP-65 waterproof standard
Capacitive touch control keypad,digits light, normal on,normal off or automatic models optional for back light
Built-in door bell
Built-in 125KHz card reader
2000 users available,each has a card and a 4-6 digits password
Has a master card
2000 serial number cards can be recorded at a time
2-10 cards to entry supportable
Replay control to open,1A
Password keypad supported, single press 4 Bit,Single Press 8 Bit, 4-6 digits code output
Special card reader model: Wiegand 26-37 output card number, button entering multiple output
Für weitere Informationen besuchen Sie bitte die Homepage zu diesem Artikel.
