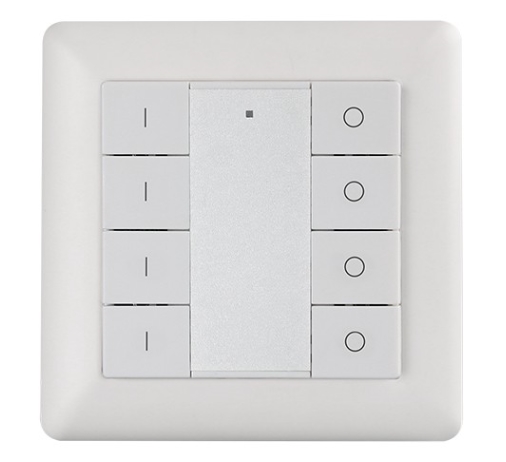

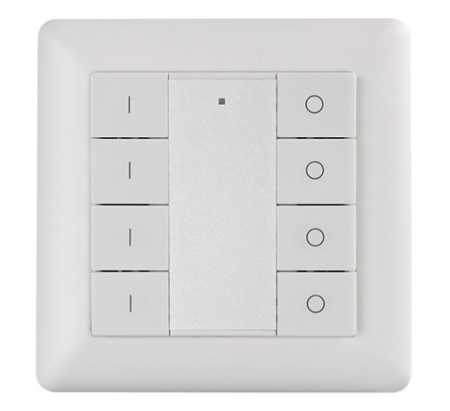

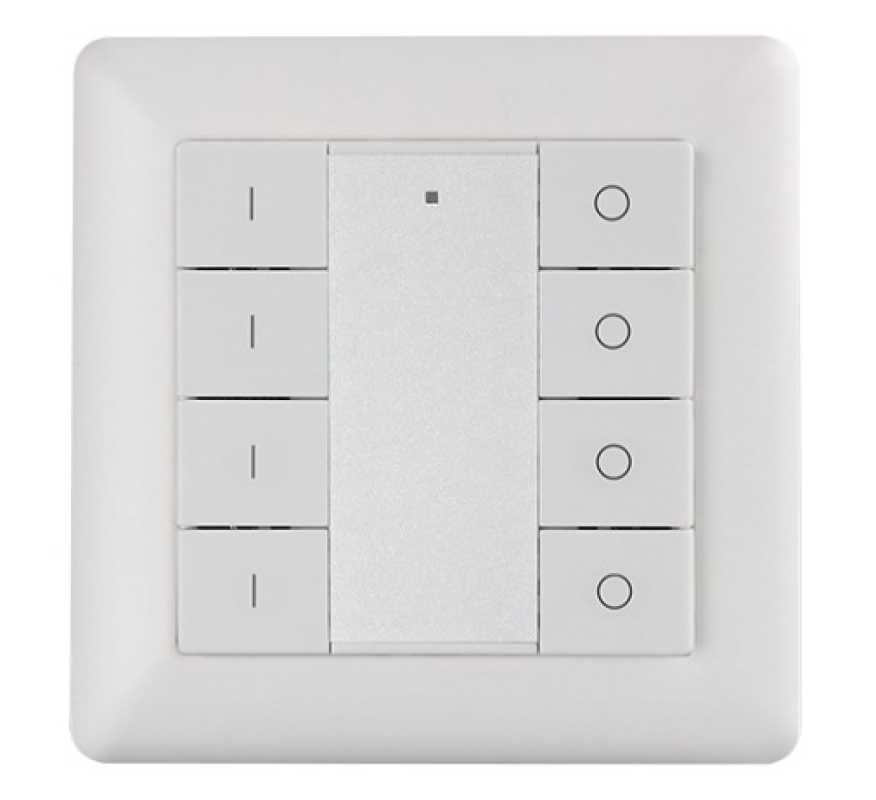

The SR-ZV9001K8-DIM is a new single color wall mounted push button z-wave secondary controller light switch which adopts latest z-wave RF Plus and Mesh network technology to switch and dim single color LED lighting. It is a universal z-wave slave and can be added to z-wave network or removed from z-wave network by z-wave primary (master) or gateway. The wall controller is powered by a cell lithium battery. The wireless dimmer is compatible with single color z wave device SR-ZV9101FA-DIM and different frequencies are available for different countries or areas. The signal transmit distance can be up to 30m. It supports 5 groups for associations, a lifeline group association to primary (master) controller and 4 groups association to devices, the groups association to devices support maximum 20 Z-wave devices per group. Compatible with existing frames from Berker, Gira, Jung and Merten, the z-wave secondary controller is easy to be mounted on the wall.
Key Features
- Z-wave secondary controller light switch
- Source-routed Mesh Network Architecture
- Each device works as a node
- All Nodes Are Transceivers
- Each Z-wave Network Allows Up to 243 Devices
- Actively route around and circumvent obstacles or radio dead spots
- Wireless Synchronization to Drastically Increase Control Distance
- Devices can communicate to one another by using intermediate nodes
- Added to z-wave network by z-wave masters or gateway
- Removed from z-wave network by z-wave masters or gateway
- Compatible with universal z-wave masters/gateway
- Supports 1 lifeline group association to master controller
- Supports 4 groups association to z-wave devices, maximum 20 devices per group
| Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
| SR-ZV9001K8-DIM | 3VDC CR2450 | 868MHz/908MHz/921MHz | 55.5*55.5*13 | / |
Compatible Receiver
| Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
| SR-ZV9101FA-DIM | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 53.4*166*23 |
| SR-ZV9101FA3-DIM | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 53.4*166*23 |
| SR-ZV9101FA7-DIM | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 53.4*166*23 |
