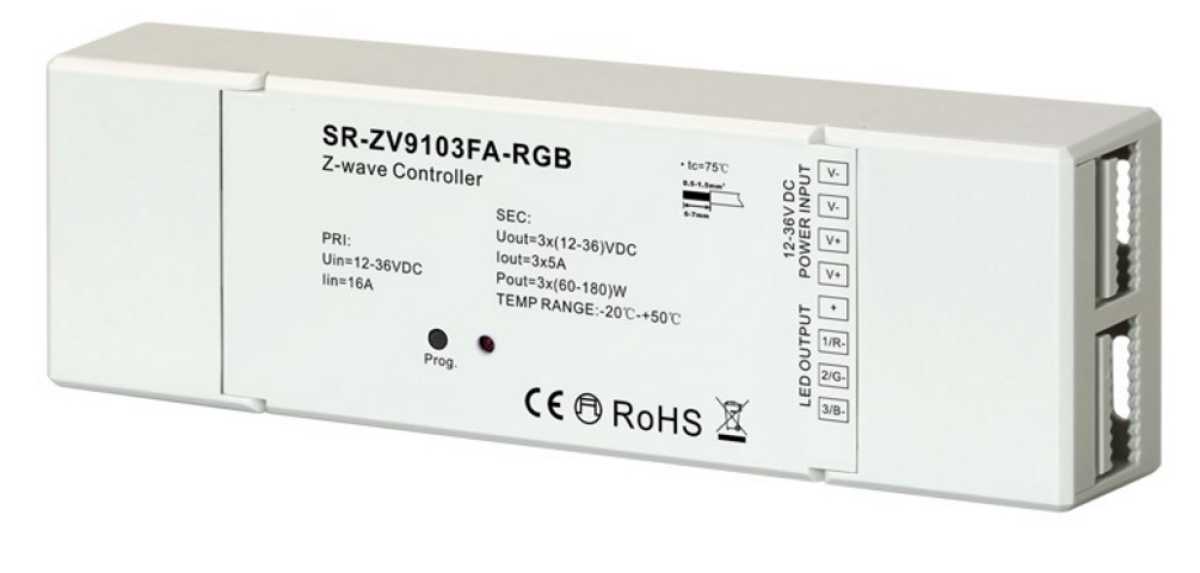

RGB LED Z-Wave Lighting Device SR-ZV9103FA-RGB

The SR-ZV9103 is a RGB z-wave lighting device and z-wave slave that adopts z-wave RF Plus and z-wave mesh network technology with 3 channels, 5A per channel output. As a z-wave slave, the device can be added to z-wave network or removed from z-wave network by z-wave primary (master) controllers or gateway. It is a universal z-wave slave which can be compatible with universal z-wave primary (master) controllers/gateway.

Key Features

• RGB Z-wave lighting device and slave controller, 5A per channel, 3 channels output
• Source-routed Mesh Network Architecture
• Each device works as a node
• All Nodes Are Transceivers
• Each Z-wave Network Allows Up to 243 Devices
• Actively route around and circumvent obstacles or radio dead spots
• Wireless Synchronization to Drastically Increase Control Distance
• Source-routed Mesh Network Architecture
• Devices can communicate to one another by using intermediate nodes
• Added to z-wave network by z-wave masters or gateway
• Removed from z-wave network by z-wave masters or gateway
• Compatible with universal z-wave masters/gateway
• RGB controller
• Scene storage and recall function

Technische Daten



Wiring Diagram for Receiver
